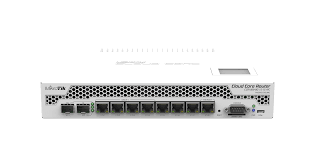

MikroTik CCR10098G1S+ Cloud Core Router
1U Rackmount
$600.00
The MikroTik CCR10098G1S+ is a highperformance, enterprisegrade cloud core router designed for demanding network environments that require fast throughput, advanced routing features, and exceptional reliability. Part of the proven MikroTik Cloud Core Router series, the CCR10098G1S+ delivers multicore processing power, versatile connectivity, and robust management capabilities, making it an ideal solution for Internet Service Providers (ISPs), enterprise networks, and missioncritical applications.
Key Features:
High Performance Processing: Powered by a Tilera 9core 1.2 GHz CPU and 2 GB DDR3 RAM, the CCR10098G1S+ handles complex routing tasks, firewall rules, VPN tunnels, and high network traffic volumes without slowing down. Its architecture ensures consistent performance even under heavy load conditions.
Advanced Connectivity: Equipped with 8 independent Gigabit Ethernet ports and 1 SFP+ 10G port for fiber uplinks, the router provides flexibility for both copper and fiber deployments. The Ethernet ports are directly connected to the CPU without switch chips, delivering maximum perport throughput.
EnterpriseClass Routing Features: Supports a wide variety of routing protocols including BGP, OSPF, and MPLS, along with VLANs, firewall, QoS, and IPsec capabilities. Ideal for building scalable, segmented, and secure enterprise or service provider networks.
No Switch Chip Limitation: Unlike previous CCR1009 models, each Ethernet port is connected independently to the CPU, eliminating the singleport throughput bottleneck and maximizing performance.
Passive Cooling for Silent Operation: A fanless design ensures silent operation and minimizes dust intrusion, making it perfect for office, datacenter, or noisesensitive environments.
Powered by RouterOS: Comes with a RouterOS Level 6 license, offering a full suite of advanced networking tools including routing, firewall, bandwidth management, hotspot, VPN, monitoring, and user authentication.
Specifications:
Form Factor: 1U rackmount
CPU: Tilera TileGX9, 9 cores, 1.2 GHz
RAM: 2 GB DDR3
Storage: 128 MB NAND + microSD slot
Networking Ports:
8 × 10/100/1000 Gigabit Ethernet (independent, no switch chip)
1 × 10G SFP+ port
Additional Features: Smart card slot, USB, RS232 serial port
Power Input: Integrated AC power supply (100–240V) + PoEin (18–56 V passive PoE)
Cooling: Passive, fanless cooling
Operating System: MikroTik RouterOS (Level 6 license)
Dimensions: 443 × 193 × 44 mm
Weight: ~1.74 kg (3.84 lbs)
Max Power Consumption: ~25 W
Ideal For:
ISPs delivering highcapacity routing to customers
Enterprise networks with multiple WAN/LAN segments
Data centers requiring highthroughput routing and fiber uplinks
Network engineers needing advanced RouterOS feature sets
Environments demanding silent, fanless operation with rackmount deployment
